SITKA is fully conversant with the machining and quality requirements of Boeing, Bombardier, Cessna, and Locheed Martin Aerospace including AS9001, NADCAP, GD&T, and the ability to accept and work with digital product/model based definition data packages or reverse engineering from sample detail or mylar. Sitka can also manufacture tooling such as Hydro Form Blocks, holding fixtures, Metal Bond and Composite tools..
|
SITKA offers 3 and 4 Axis vertical and horizontal CNC machining of aluminum and hard metal parts in the following sizes.
Horizontal machining envelop 16 x 16 inch ( 400 x 400 mm) and vertical machining envelop 20 x 40 inch (500 x 1000 mm)
|

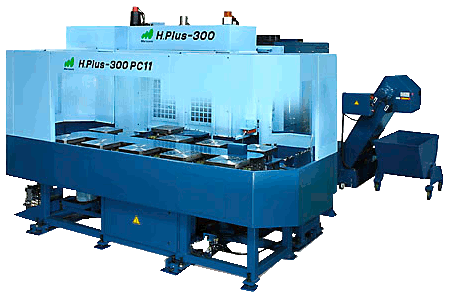

Matsuura HPLUS 300 PC11 Horizontal
(11 pallets)
X axis = 20”
Y axis = 20”
Z axis = 20”
B axis – .001 deg incr.
11 Pallets
15,000 RPM
30 HP
Cat 40 taper
150 tool magazine |
Mori Seiki SH400 Horizontal (x2)
X axis = 15.7”
Y axis = 15.7”
Z axis = 20”
B axis – .001 deg incr.
2 Pallets
12,000 RPM
30 HP
Cat 40 taper
60 tool magazine |
Haas EC400 Horizontal
X axis = 15.7”
Y axis = 15.7”
Z axis = 20”
B axis – .001 deg incr.
2 Pallets
12,000 RPM
30 HP
Cat 40 taper
60 tool magazine |
Fadal 4020 Vertical (x2)
X axis = 40”
Y axis = 20”
Z axis = 28”
10,000 RPM
22.5 HP
Cat 40 taper
21 tool magazine
|
|
